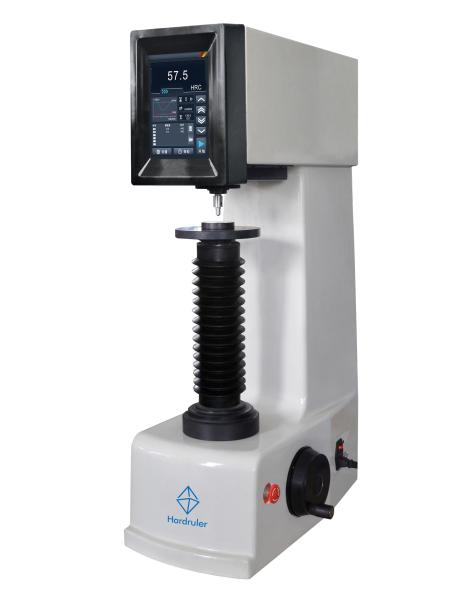

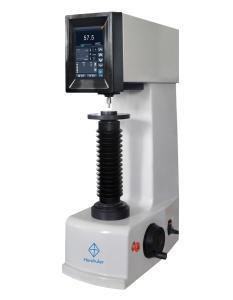

310mm HR-145C Automatic Twins Rockwell Digital Hardness Tester

Name: 310mm HR145C Automatic Twins Rockwell Digital Hardness Tester
Brand: HARDRULER
Price: 1 USD

Brand Name : HARDRULER

Model Number : HR-150C

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : negotation

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 600 sets/month

Packaging Details : Standard exporting package

Loading Method : Automatic Loading/Dwell/Unloading

Operation : Automatic one key

LCD monitor : Touch screen

Type : Rockwell and superficial Rockwell

Contact Now

Usage

Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc. Also suitable for surface quenched steel, surface heat treating and chemical treating materials, sheet, zinc layers, chrome layers, tin layers etc.

Feature & Advantage

Support for all the Rockwell and superficial Rockwell scales;
Support for conversion scales of different kinds of hardness;
With arc correction function;
Touch screen display and operation, dynamically display the working state of the lifting screw and the indenter;
Press operation for the test table, fast rising or dropping;
One key to complete the rising of the specimen, loading dwell and unloading of the indenter, displaying of the hardness value, homing of the test table;
With data storage function, automatic calculation of the maximum, minimum, average of the hardness value, the test results can be printed for output, and with a RS232 interface users can connect it to the computer for output

Technical data

Model	HR-145C
Initial Test Force	3kgf (29.42N), 10kgf (98.07N)
Total Test Force	15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N), 60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)
Indenter	Diamond Rockwell Indenter, ф1.588mmBall Indenter
Loading Method	Automatic Loading/Dwell/Unloading
Operation	Automatic Rising and Homing, One Key to Complete
Hardness Reading	Touch Screen
Test Scale	HRA, HRD, HRC, HRFW, HRBW, HRGW, HRHW, HREW, HRKW, HRL, HRM, HRP, HRR, HRS, HRV HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y
Conversion Scale	HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HBW
Data Output	Built-in Printer,RS232 Interface
Hardness Resolution	0.1HR
Dwell Time	0~99s
Max. Height of Specimen	310mm
Throat	150mm
Power Supply	AC220V,50Hz
Execute Standard	ISO 6508,ASTM E18,JIS Z2245,GB/T 230.2
