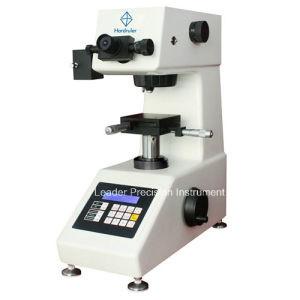

1000gf test load Micro-Vickers Hardness Tester

Supply Ability : 50, 000PCS/Year

Payment Terms : L/C, T/T, Western Union

Place of Origin : CHINA

MOQ : 1 Piece

Price : negotiation

Brand Name : HARDRULER

Model Number : HV-1000

Certification : CE

Application : Metal, Plastic, Ceramics and Glass

Standard : ISO, ASTM, GB/T

Calibrating Method : Standard Hardness Test Blocks

Rated Voltage : 110V/220V

Support Language : English

Name : Micro-Vickers Hardness Tester

Model : Hv-1000

Testing Range : Hv1~Hv2967

Load Control : Automatic (Loading/Dwell/Unloading)

Dwell Time : Adjustable 0~60s

Magnification of Microscope : Observation:10X; Measurement:40X

Digital Eyepiece : Magnification:10X

X-Y Anvil Size : 100X100mm;

X-Y Anvil Travel : 25 X25mm

X-Y Anvil Resolution : 2um

Origin : Guangdong

HS Code : 9024800000

Port : Shenzhen, China

Contact Now

Usage
Model HV-1000 series Micro-Vickers Hardness Tester is suitable to determine the Vickers hardness of steel, non-ferrous metals, ceramics and treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.

Typical applications
1. Steels, IC wafers, non-ferrous metals
2. Thin plastic, metallic foils, plating, coating, surface layers, laminated metals
3. Glass, ceramics, agate, gem
4. Depth and gradient of carburized and flame hardened layers

Features & Advantage
1. Motorized turret (HV-1000M)
2. Fully automatic load, dwell and unloading control
3. Integrated hardness calculator
4. Two optical paths
5. CCD Video measurement system optional

Specifications

Product name Micro-Vickers Hardness Tester
Model HV-1000
Testing load gf 10, 25, 50, 100, 200, 300, 500, 1000
N 0.098, 0.245, 0.49, 0.98, 1.96, 2.94, 4.9, 9.8
Testing Range HV1~HV2967
Load control Automatic (Loading/Dwell/Unloading)
Dwell Time Adjustable 0~60s
Magnification of Microscope Observation:10x; Measurement:40x
Digital Eyepiece Magnification:10x
X-Y Anvil Size:100x100mm; Travel:25 x25mm; Resolution:2um
Max. Height Of Specimen 90mm
Instrument Throat 100mm
Hardness Indication 0.1/LCD Display, Dwell time, hardness value
Illumination Halogen lamp light source
Dimension (L*W*H) 480*310*550mm
Gross/Net Weight 50Kg/40Kg
Power Supply AC220V 50Hz
Accuracy EN-ISO 6507 , ASTM E384, GB/T4340.2

Standard delivery

Main Unit 1pcs
Diamond Vickers Indenter 1pcs
10x Objective 1pcs
40x Objective 1pcs
10x analogue eyepiece 1pcs
XY-stage with micrometers 1pcs
Clamping devices 3pcs
Adjustable foot 3pcs
Level gauge 1pcs
Micro-Vickers test plates 2pcs
Accessories Case 1pcs
Anti-dust Cover 1pcs
Installation & user manual 1pcs
